Rear Door Rattle Noise – 2014 Ram Pro Master

“This site contains affiliate links for which OEMDTC may be compensated”

NUMBER: 23-010-16
GROUP: Body
DATE: March 02, 2016



THIS BULLETIN SUPERSEDES SERVICE BULLETIN 23-027-15, DATED JUNE 20, 2015, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE UPDATED OVERVIEW.

THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE TRANSMITTAL (RRT) 15-071. ALL APPLICABLE SOLD AND UN-SOLD RRT VIN’s HAVE BEEN LOADED. TO VERIFY THAT THIS RRT SERVICE ACTION IS

APPLICABLE TO THE VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN TECHCONNECT. ALL REPAIRS ARE REIMBURSABLE WITHIN THE PROVISIONS OF WARRANTY.



SUBJECT:

Rear Door Rattle Noise



OVERVIEW:

**This bulletin involves replacing the left rear door upper and lower latches and the rear door center striker.**



MODELS:

2014 (VF) Ram Pro Master (NAFTA)



SYMPTOM/CONDITION:

The customer may describe a rear door rattle noise and/or a rear door lower latch not working properly. An example of a properly functioning latch (1) and malfunctioning latch (2) are shown in (Fig. 1).



Fig. 1 Left Rear Door Lower Latch

Fig. 1 Left Rear Door Lower Latch

1 – Proper Latch Operation – Latch Fully Engaged With Door Closed
2 – Latch Malfunction – Latch Not Engaged With Door Closed


DIAGNOSIS:

If a customer’s VIN is listed in VIP or your RRT VIN list, perform the repair. For all other customers that describe the symptom/condition, perform the Repair Procedure.



PARTS REQUIRED:

Qty. Part No. Description

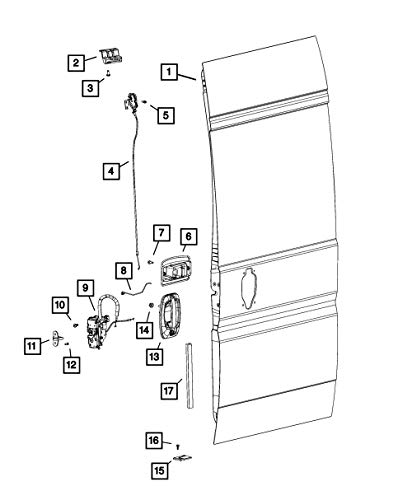

1 (AR) 68226085AB Rear Door Rattle Noise - 2014 Ram Pro Master | small light Latch, Cargo Door, Left, Upper (Body 11, 12, 52) H1 Cargo Van
1 (AR) 68226086AB Rear Door Rattle Noise - 2014 Ram Pro Master | small light Latch, Cargo Door, Right, Upper (Body 11, 12, 52) H1 Cargo Van
1 (AR) 68226087AB Latch, Cargo Door, Left, Upper (Body 13,16,17, 26, 53, 56) H2 Cargo Van
1 (AR) 68226088AB Latch, Cargo Door, Right, Upper (Body 13,16,17, 26, 53, 56) H2 Cargo Van
1 68226089AC Rear Door Rattle Noise - 2014 Ram Pro Master | small light Latch, Cargo Door, Lower

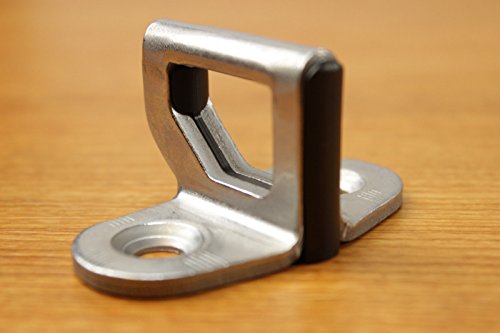

1 68232446AA Rear Door Rattle Noise - 2014 Ram Pro Master | small light Striker, Door, Latch, Center
2 68201888AA Rear Door Rattle Noise - 2014 Ram Pro Master | small light Screw, Torx, M8x1.25×23, Striker To Door



REPAIR PROCEDURE:

  1. Replace both right and left rear door upper latches. Refer to the detailed service procedures available in DealerCONNECT> TechCONNECT under: Service Info> 23 Body> Doors – Rear> Latch, Door, Rear Upper> Removal/Installation.
  2. Replace the rear door lower latch. Refer to the detailed service procedures available in DealerCONNECT> TechCONNECT under: Service Info> 23 – Body> Doors – Rear> Latch, Door, Rear Lower> Removal/Installation.
  1. Replace the rear door center latch striker and fasteners. Refer to the detailed service procedures available in DealerCONNECT> TechCONNECT under: Service Info> 23 Body> Doors – Rear> Striker, Door Latch> Center> Removal/Installation.



POLICY:

Reimbursable within the provisions of the warranty.



TIME ALLOWANCE:

Labor Operation No: Description Skill Category Amount
23-41-01-9H Replace Center Striker, Upper And Lower Latches (1 – Semi-Skilled) 6 – Electrical and Body Systems 0.8 Hrs.



FAILURE CODE:

ZZ Service Action
