May 9, 2019 NHTSA CAMPAIGN NUMBER: 19V347000
Tailgate May Open Unexpectedly
If the tailgate opens while the vehicle is being driven, cargo may fall out the vehicle and create a road hazard, increasing the risk of crash.
NHTSA Campaign Number: 19V347
Manufacturer Chrysler (FCA US LLC)
Components LATCHES/LOCKS/LINKAGES
Potential Number of Units Affected 410,351
Summary
Chrysler (FCA US LLC) is recalling certain 2015-2017 Ram 1500, 2500 and 3500 pickup trucks equipped with an 8 foot truck bed and a power locking tailgate. Chrysler is also recalling all 2018 Ram 1500, 2500 and 3500 pickup trucks built before April 1, 2018 that are equipped with a power locking tailgate. The tailgate actuator limiter tab may fracture and cause the tailgate to unlatch and open while driving.
Remedy
Chrysler will notify owners, and dealers will repair the tailgate latch, free of charge. The recall began May 23, 2019. Chrysler is expected to notify owners of the expanded population on October 18, 2019. Owners may contact FCA US customer service at 1-800-853-1403. FCA US’s number for this recall is V44. Note: 2015-2017 MY Ram 1500 pickup trucks with truck beds other than 8 foot, are currently covered under NHTSA recall 18V-486 for this issue.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.
Check if your Vehicle has a Recall
Revision 2 September 2019
Dealer Service Instructions for:
Safety Recall V44 / NHTSA 19V-347 Tailgate Latch
NOTE: Added 2013 and 2014 Model Years to involved vehicles.
Remedy Available
2013 – 2018 | (D2) | RAM 3500 Pickup |
2013 – 2018 | (DJ) | RAM 2500 Pickup |
2013 – 2018 | (DS) | RAM 1500 Pickup |
2013 – 2018 | (DX) | RAM Truck (Mexico) |
NOTE: This recall applies only to the above 2018 vehicles built until March 31, 2018 (MDH 033100)
NOTE: Some vehicles above may have been identified as not involved in this recall and therefore have been excluded from this recall.
IMPORTANT: Some of the involved vehicles may be in dealer used vehicle inventory. Dealers should complete this recall service on these vehicles before retail delivery. Dealers should also perform this recall on vehicles in for service. Involved vehicles can be determined by using the VIP inquiry process.
Subject
The tailgate latch on about 693,128 of the above additional vehicles may have been built with a tailgate actuator limiter tab within the power lock actuator control assembly that may fracture allowing the lock rod control bracket to over-travel which may pull the lock rods and release the tailgate latches, potentially resulting in the tailgate inadvertently falling open at any time. An unintended opening of the tailgate while driving may result in a loss of unrestrained cargo from the truck bed. Lost cargo may create a road hazard to operators and occupants of other vehicles, and can cause such vehicles to crash without prior warning.
Repair
Install a tailgate actuator stop block that will limit the pivot arm from over traveling and pulling on the locking/unlocking rods.
Parts Information
Description | Part Number |
Stop Block (MSQ 5) | 68448027AA |
Parts Return
No parts return required for this campaign.
Special Tools
No special tools are required to perform this service procedure.
Service Procedure
- Open the tailgate.
- If equipped with a tailgate liner, remove the screws and remove the tailgate liner.
- Remove the fasteners that secure the tailgate cover to the inside of the tailgate and remove the cover (Figure 1).
- Grasp the lock actuator solenoid boot to expose the actuator slider (Figure 2).
Figure 2 – Actuator Solenoid Boot
- Insert the actuator stop block onto the solenoid slider (Figure 3).
Figure 3 – Actuator Stop Block Installation
- Reinstall the actuator solenoid boot.
NOTE: Lock actuator boot must be fully seated onto solenoid collar. Use an inspection mirror to visually verify the backside of the boot is fully seated.
- For vehicles without a tailgate liner, install the cover onto the tailgate and install the bolts.
- Tighten the fasteners using the sequence shown to five N·m (44 In. lbs.) (Figure 4).
Figure 4 – Fastener Tightening Sequence
- On vehicles with a tailgate liner, position the tailgate cover onto the inside of the tailgate.
- Install the liner onto the tailgate.
- Tighten the fasteners securely.
- Close the tailgate and return the vehicle to the customer.
SEOCONTENT-START
Completion Reporting and Reimbursement
Claims for vehicles that have been serviced must be submitted on the DealerCONNECT Claim Entry Screen located on the Service tab. Claims paid will be used by FCA to record recall service completions and provide dealer payments.
Use the following labor operation number and time allowance:
Labor Operation Number | Time Allowance | |
---|---|---|
Install latch actuator stop block | 08-V4-41-82 | 0.2 hours |
NOTE: See the Warranty Administration Manual, Recall Claim Processing Section, for complete recall claim processing instructions.
Dealer Notification
To view this notification on DealerCONNECT, select “Global Recall System” on the Service tab, then click on the description of this notification.
Owner Notification and Service Scheduling
All involved vehicle owners known to FCA are being notified of the service requirement by first class mail. They are requested to schedule appointments for this service with their dealers. A generic copy of the owner letter is attached.
Vehicle Lists, Global Recall System, VIP and Dealer Follow Up
All involved vehicles have been entered into the DealerCONNECT Global Recall System (GRS) and Vehicle Information Plus (VIP) for dealer inquiry as needed.
GRS provides involved dealers with an updated VIN list of their incomplete vehicles. The owner’s name, address and phone number are listed if known. To use this system, click on the “Service” tab and then click on “Global Recall System.” Completed vehicles are removed from GRS within several days of repair claim submission. Your dealer’s VIN list for each recall displayed can be sorted by: those vehicles that were unsold at recall launch, those with a phone number, city, zip code, or VIN sequence.
Dealers must perform this repair on all unsold vehicles before retail delivery. Dealers should also use the VIN list to follow up with all owners to schedule appointments for this repair.
Recall VIN lists may contain confidential, restricted owner name and address information that was obtained from the Department of Motor Vehicles of various states. Use of this information is permitted for this recall only and is strictly prohibited from all other use.
Additional Information
If you have any questions or need assistance in completing this action, please contact your Service and Parts District Manager.
Customer Services / Field Operations
FCA US LLC
This notice applies to your vehicle,
[Model Year and Model] VIN XXXXXXXXXXXXXXXXX
V44/NHTSA 19V-347
LOGO
VEHICLE PICTURE
YOUR SCHEDULING OPTIONS
- Call the FCA Recall Assistance Center at 1-866-220-6747. An agent can confirm part availability and help schedule an appointment
- Visit mopar.com, scan the QR code below, or download the Mopar Owner’s Companion App.
QR Code
Get access to recall notifications, locate your nearest dealer, and more through this website or Mopar Owner’s Companion App. You will be asked to provide your Vehicle Identification Number (VIN) to protect and verify your identity. The last eight characters of your VIN are provided above.
DEALERSHIP INSTRUCTIONS
Please reference Safety Recall V44.
IMPORTANT SAFETY RECALL
Tailgate Latch
Dear [Name],
This notice is sent to you in accordance with the National Traffic and Motor Vehicle Safety Act.
FCA has decided that a defect, which relates to motor vehicle safety, exists in certain [2015 – 2017 model year (D2) RAM 3500 Pickup, (DJ) RAM 2500 Pickup, (DS) RAM 1500 Pickup and some 2018 model year built before April 1, 2018 (D2) RAM 3500 Pickup, (DJ) RAM 2500 Pickup, (DS) RAM 1500 Pickup] vehicles.
It is extremely important to take steps now to repair your vehicle to ensure the safety of you and your passengers.
WHY DOES MY VEHICLE NEED REPAIRS?
The tailgate latch on your vehicle [1] may have been built with a tailgate actuator limiter tab that may fracture allowing the lock rod control bracket to over-travel which may pull the lock rods and release the tailgate latches, potentially resulting in the tailgate inadvertently falling open at any time. An unintended opening of the tailgate while driving may result in a loss of unrestrained cargo from the truck bed. Lost cargo may create a road hazard to operators and occupants of other vehicles, and can cause such vehicles to crash without prior warning.
HOW DO I RESOLVE THIS IMPORTANT SAFETY ISSUE?
FCA will repair your vehicle [2] free of charge (parts and labor). To do this, your dealer will install a tailgate actuator stop block that will limit the pivot arm from over traveling and pulling on the locking/unlocking rods. The estimated repair time is about one hour. In addition, your dealer will require your vehicle for proper check-in, preparation, and check-out during your visit, which require more time. Your time is important to us, so we recommend that you schedule a service appointment to minimize your inconvenience. Please bring this letter with you to your dealership.
VISIT RECALLS.MOPAR.COM/HELP FOR MORE INFORMATION AND ANSWERS TO FREQUENTLY ASKED QUESTIONS
TO SCHEDULE YOUR FREE REPAIR,
CALL YOUR CHRYSLER, DODGE, JEEP OR RAM DEALER TODAY
WHAT IF I ALREADY PAID TO HAVE THIS REPAIR COMPLETED?
If you have already experienced this specific condition and have paid to have it repaired, you may visit www.fcarecallreimbursement.com to submit your reimbursement request online. [3] Once we receive and verify the required documents, reimbursement will be sent to you within 60 days. If you have had previous repairs performed and/or already received reimbursement, you may still need to have the recall repair performed.
We apologize for any inconvenience, but are sincerely concerned about your safety. Thank you for your attention to this important matter.
Customer Assistance/Field Operations
FCA US LLC
Mr. Mrs. Customer
1234 Main Street
Hometown, MI 48371
[1] If you no longer own this vehicle, please help us update our records. Call the FCA Recall Assistance Center at 1-800-853-1403 to update your information.
[2] If your dealer fails or is unable to remedy this defect without charge and within a reasonable time, you may submit a written complaint to the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Ave., S.E., Washington, DC 20590, or you can call the toll-free Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-4249153), or go to safercar.gov.
[3] You can also mail in your original receipts and proof of payment to the following address for reimbursement consideration: FCA Customer Assistance, P.O. Box 21-8004, Auburn Hills, MI 48321-8007, Attention: Recall Reimbursement.
Note to lessors receiving this recall notice: Federal regulation requires that you forward this recall notice to the lessee within 10 days.
SEOCONTENT-END
12 Affected Products
Vehicles
MAKE | MODEL | YEAR |
RAM | 1500 | 2015-2018 |
RAM | 2500 | 2015-2018 |
RAM | 3500 | 2015-2018 |
14 Associated Documents
ISSUED Owner Notification Letter(Part 577)
RCONL-19V347-4155.pdf 516.818KB
Manufacturer Notices(to Dealers,etc) – 05/10/2019 New Safety Recall Advanced Communication – V44
RCMN-19V347-6135.pdf 101.752KB
Remedy Instructions and TSB
RCRIT-19V347-9373.pdf 1099.79KB
Defect Notice 573 Report
RCLRPT-19V347-3238.PDF 215.999KB
Recall Acknowledgement
RCAK-19V347-6585.pdf 245.382KB
Remedy Instructions and TSB
RCRIT-19V347-0200.pdf 1099.644KB
Recall Quarterly Report #2, 2019-3
RCLQRT-19V347-5400.PDF 211.273KB
Remedy Instructions and TSB
RCRIT-19V347-6614.pdf 1100.002KB
Recall Quarterly Report #1, 2019-2
RCLQRT-19V347-5003.PDF 211.145KB
Recall 573 Report-Amendment 1
RCLRPT-19V347-4741.PDF 215.599KB
Chronology
RMISC-19V347-7699.pdf 332.358KB
Recall Quarterly Report #3, 2019-4
RCLQRT-19V347-8154.PDF 211.371KB
ISSUED Renotification Notice
ISSUED Owner Notification Letter(Part 577)
RCONL-19V347-6588.pdf 516.348KB
Latest Recalls Documents
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=19V347&docType=RCL
- 【OEM FIT】Over time the factory rear latch handle fails and can be annoying to fix. Our handle have undergone a rigorous testing to ensure proper operating parameters to factory specification, exactly OEM design to replace your defective latch door handle
- 【PREMIUM QUALITY】Long life-span matters, that is why our tail gate handle and tailgate handle bezel is crafted from custom-made reinforced plastic and surface-treated to create anticaustic textured surface to severe weather conditions and years of handling
- 【FITS】1999-2006 Chevy Silverado 1500, 2001-2006 Silverado 1500HD 2500HD 3500, 1999-2004 Silverado 2500, 2007 Silverado 1500 1500HD 2500HD 3500 Classic | 1999-2006 GMC Sierra 1500, 01-06 Sierra 1500HD 2500HD 3500, 99-04 Sierra 2500, 07 Sierra 1500 1500HD 2500HD 3500 Classic
- 【REPLACE OE NUMBER】15997911, 15228539, 15228541, 15228540, GM1915105, GM1916102, 15188001, 77488. The tail gate latch handle have endurance pull validation tests to guarantee long-term dependability and increased rigidity
- 【24-MONTH WARRANTY】If the rear tailgate door handle fails, cracks, stops working or any other problems, you can contact us through amazon message to apply the service of carefree REPLACEMENT or REFUND
- Direct Replacement - This rear latch is manufactured to the OE specification to provide factory-fresh appearance and direct-fit, it restore the ease of opening and closing your vehicle's tailgate.
- Trustworthy Quality - This part is engineered with high-quality plastic rod clips and latch mechanism to ensure exceptional performance and long-lasting durability. All of the replacement lock latches undergo strict quality control not just before shipping but throughout the production process.
- Ensure Fit - Replacement for 1999-2006 Chevy Silverado 1500, 1999-2004 Silverado 2500, 2001-2006 Silverado 3500 1500HD 2500HD, 02-06 Avalanche 1500 2500 | 1999-2006 GMC Sierra 1500, 99-04 Sierra 2500, 01-06 Sierra 3500 1500HD 2500HD | 2002-2006 Cadillac Escalade EXT & more, please input your make, model and trim level into the Amazon Garage to make sure this part fits your exact vehicle.
- Replaces Part # - 15921948, 15921949, 15107685,15107686, it is a direct replacement for the factory liftgate actuator of your vehicle. Perfect fit for your vehicle.
- 1 Year Warranty - This back trunk latch comes with 1 year warranty, every component is guaranteed to remain in good operating condition while you own it. If the latch ever fails or any other problems, simply contact us for free replacement or refund. Save hundreds off of dealer prices and take advantage of our products and services.
- Ideal for sealing dump body and dump trailer tailgates against the body of the vehicle.
- Helps prevent unintentional opening of the tailgate.
- Keeps mulch, dirt, loose stone, or any other messy material inside the vehicle.
- Available in steel, stainless steel, and aluminum.

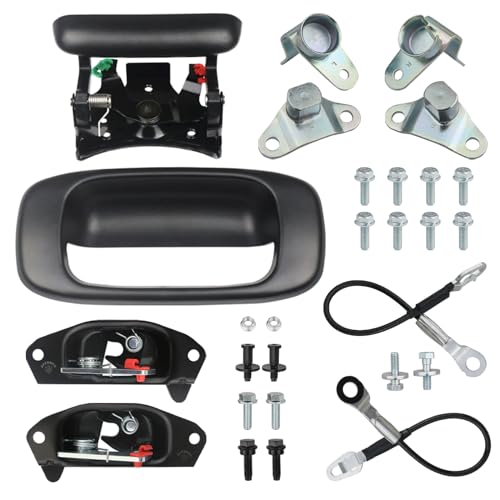

- Tailgate Handle Kit Compatible With 1999 - 2006 Silverado 1500, 2001 - 2006 Silverado 1500 HD, 2001 - 2006 Silverado 3500, 2001 - 2006 Silverado 2500 HD, 2007 Silverado 1500 HD Classic, 1999 - 2004 Sierra 2500, 2007 Sierra 1500 Classic, 2007 Sierra 3500 Classic, 2007 Sierra 2500 HD Classic
