NUMBER: 09-001-09
GROUP: Engine
DATE: February 27, 2009
SUBJECT:
3.0L Diesel Alternator Inoperative
OVERVIEW:
This bulletin involves installing an alternator and a splash shield on the alternator.
MODELS:
| 2006 – 2009 | (LE) | 300/300C Touring (International Markets) |
| 2005 – 2009 | (WH) | Grand Cherokee (International Markets) |
| 2007 – 2008 | (WK) | Grand Cherokee |
| 2006 – 2009 | (XH) | Commander (International Markets) |
NOTE: This bulletin applies to:
- all 2007 and 2008 WK vehicles equipped with a 3.0L diesel engine (sales code EXL)
- all LE/WH/XH vehicles equipped with a 3.0L diesel engine (sales code EXL) built before June 17, 2008 (MDH00617XX)
SYMPTOM/CONDITION:
The vehicle operator or technician may notice oil marks (witness marks) on the alternator. This condition can only happen while pouring the oil into the engine and care is not taken to ensure none is spilled.
DIAGNOSIS:
If the alternator is inoperative perform the repair procedure.
PARTS REQUIRED:
| Qty. | Part No. | Description |
|---|---|---|

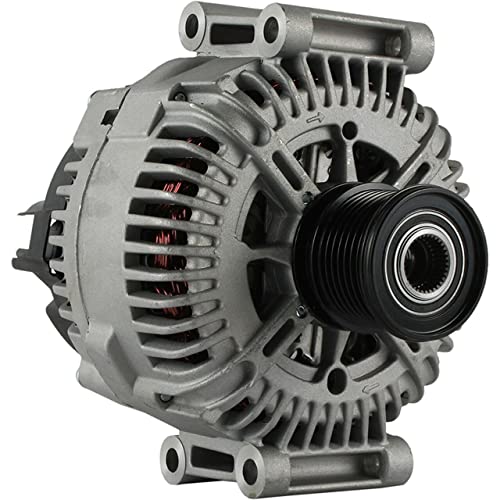

| 1 (AR) | 04801250AC
Last update on 2026-06-19 / Affiliate links / Images from Amazon Product Advertising API | Alternator
**WK/WH/XH Bodies** |
| **(AR) 1 | 04896808AC | Alternator LE Bodies** |
| 1(AR) | 04801798AA | Shield, Splash |
REPAIR PROCEDURE:
- Replace the alternator. Refer to the detailed removal procedures available in DealerCONNECT > TechCONNECT under: Service Info > 08 – Electrical > 8F – Engine Systems > Charging > Generator (Alternator) > Removal/Installation – 3.0L Diesel.
CAUTION: **Ensure the capacitor wire is properly clipped, so it doesn’t get pinched when the shield is installed.**
- Install the splash shield (p/n 04801798aa) on top of the alternator. This splash shield snaps into the grooves on top of the alternator.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
| Labor Operation No: | Description | Amount |
|---|---|---|
| 08-05-01-91 | Alternator, Replace and Splash Shield Installed (B) | WH/WK/XH Bodies 1.6 Hrs. |
| 08-05-01-91 | Alternator, Replace and Splash Shield Installed (B) | LE Bodies 3.6 Hrs. |
| 08-05-01-90 | Splash Shield, Install (B) | 0.3 Hrs. |
FAILURE CODE:
| ZZ | Service Action |
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 09-003-08, DATED SEPTEMBER 30, 2008, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE THE CORRECTION OF THE PART REQUIRED AND UPDATED REPAIR PROCEDURE.
