NUMBER: 05-005-15 REV. A
GROUP: Brakes
DATE: November 13, 2015
THIS BULLETIN SUPERSEDES SERVICE BULLETIN 05-005-15, DATED JUNE 20, 2015, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE ADDITION OF BRAKE PACKAGE SALES CODE BRD.
SUBJECT:
Front Brake Squeak/Squeal Noise
OVERVIEW:
This bulletin involves replacing the front brake pads and related hardware.
MODELS:
| 2014 – 2015 | (VF) | Ram Pro Master |
NOTE: **This bulletin applies to vehicles within the following markets/countries: NAFTA**
NOTE: This bulletin applies to vehicles built on or before April 8, 2015 (MDH 0408XX) equipped with Anti-Lock 4-Wheel Disc HD Brakes (sales code BR6).
NOTE: **This bulletin applies to vehicles built on or before June 9, 2015 (MDH 0609XX) equipped with 4-Wheel Anti-Lock Disc Power Brakes (sales code BRD).**
SYMPTOM/CONDITION:
The customer may describe a front brake squeak/squeal noise when applying the brakes.
DIAGNOSIS:
If the customer describes the symptom, perform the Repair Procedure.
PARTS REQUIRED:
| Qty. | Part No. | Description |
| 1 (AR) | 68230105AC

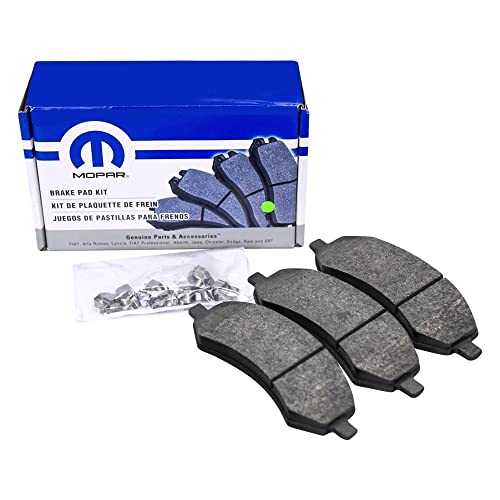

Mopar 68230105AC PAD KIT FRONT DISC BRAKE
| PAD KIT, Front Disc Brake, Includes Hardware ONLY Sales Code BR6 |
| **1 (AR) | 68269695AB
Mopar 68269695AB PAD KIT FRONT DISC BRAKE
| PAD KIT, Front Disc Brake, Includes Hardware ONLY Sales Code BRD** |
REPAIR PROCEDURE:
Replace the front brake pads and hardware with the NEW revised front brake pad kit. Refer to the detailed service procedures available in DealerCONNECT> TechCONNECT under: Service Info> 05 – Brakes, Base> Hydraulic/Mechanical> PADS, Brake, Front> Removal/Installation.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
| Labor Operation No: | Description | Skill Category | Amount |
|---|---|---|---|
| 05-70-22-9K | Pads, Disc Brake – Replace Front Set (2 – Skilled) | 4 – Chassis Systems | 0.7 Hrs. |
FAILURE CODE:
| ZZ | Service Action |
- Non chlorinated brake parts cleaner
- Low volatile organic compounds(VOC) formulation
- Formulated to remove brake fluid, grease, oil and other contaminants from brake linings and pads
- Applied on brake cylinders, brake drums, brake linings, brake shoes, calipers and clutch discs
- Comes in 14-ounce bottle includes 12 bottle per pack

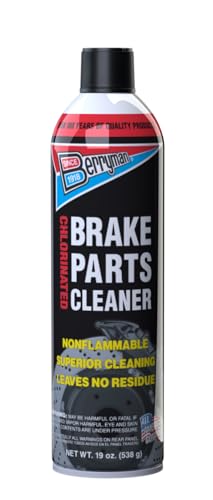

- Powerful Brake System Degreaser – Quickly removes brake fluid, grease, oil, and other contaminants from brake components to restore optimal braking performance.
